A050VW01 V0 5.0 inch 800(RGB)×480 LCD Touch Panel Display
Product details :
A050VW01 V0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 119.6(W)×76.5(H)×5.75(D) mm, viewing area size of 111.2(W)×67.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 76.6g (Typ.). As a TN, Normally White, Transmissive LCM product, A050VW01 V0 can provides 380 cd/m² display brightness 300:1 transimissive contrast ratio, 55/55/55/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A050VW01 V0 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.)(VDD).
| AUO LCD SCREEN A050VW01 V0 |
| Panel Brand | AUO |
| Panel Model | A050VW01 V0 |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480(WVGA) 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108 × 64.8 (H×V) mm |
| Bezel Opening | 111.2 × 67.8 (H×V) mm |
| Outline Size | 119.6 × 76.5 × 5.75 (H×V×D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmission) |
| Viewing Angle | 55/55/55/45 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 15/20 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 50% NTSC |
| Lamp Type | 6S2P WLED , 10K hours, without driv |
| Used for | Automotive Display / Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 76.6g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , FPC , 50 pins |
| Input Voltage | 3.3 (Typ.) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| A050VW01 V0 5.0 inch 800(RGB)×480 LCD Touch Panel Display |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of A050VW01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of A050VW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of A050VW01 V0 ?
A: Of course!sample order is welcome !
|
|

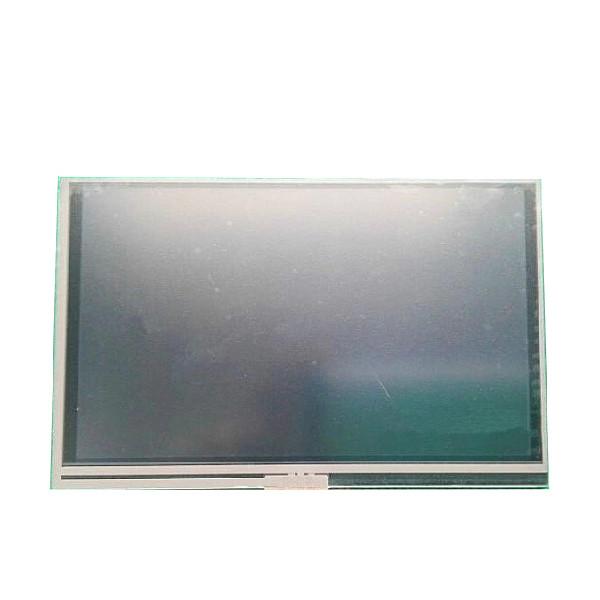

A050VW01 V0 5.0 inch 800(RGB)×480 LCD Touch Panel Display Images
|
