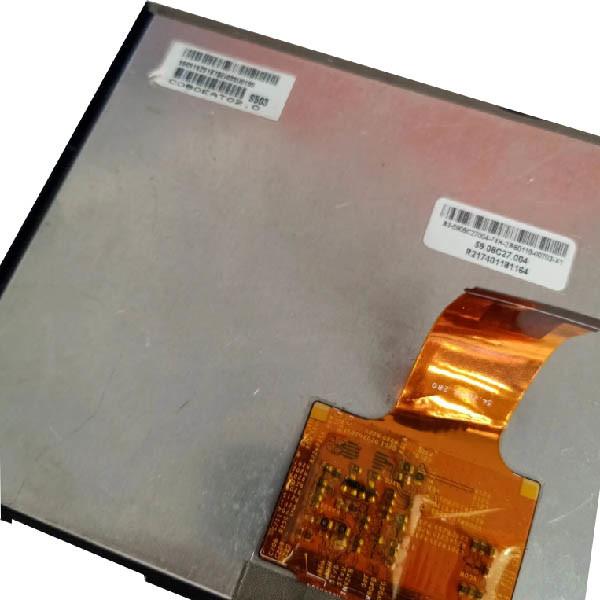

AUO C080EAT02.0 TFT LCD display 8.0 inch lcd module
Product details :
| AUO LCD SCREEN C080EAT02.0 |
| manufacturer | AUO |
| Model Name | C080EAT02.0 |
| Diagonal size | 8.0 inch |
| Screen type | a-Si TFT-LCD, screen assembly |
| Resolution | 1280(RGB)×720 WXGA 184PPI |
| Pixel arrangement | RGB Horizontal Stripe |
| Display size | 176.64(Horizontal)×98.36(Vertical) mm |
| physical dimension | 339.6(Horizontal)×118.45(Vertical) mm |
| Surface treatment | Matte |
| Display brightness | 650 cd/m² (Typ.) |
| Contrast | 800:1 (Min.) (transmission) |
| Best angle | Symmetry |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding | 20 (Max.)(Tr+Td) ms |
| Number of pixels | 16.7M 80% NTSC |
| Backlight type | WLED [6S4P], 10K hours, no driver |
| Mass | 275g |
| Used for | Automotive Display |
| Refresh rate | 60Hz |
| Touch function | PCAP |
| Interface Type | LVDS (2 ch, 8-bit) , 40 pins FPC |
| Supply voltage | 3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Application Environment | Working temperature: -30 ~ 85 °C; Storage temperature: -40 ~ 95 °C; Vibration resistance: 2.9G (28.4 m/s²) |
| AUO C080EAT02.0 TFT LCD display 8.0 inch lcd module |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
About transportation:
- Please provide the consignee's full name and detailed delivery address.
- We only ship according to the delivery address in the order, if you want to change the delivery address, please contact me in advance.
- NOTE: Buyer is responsible for all additional customs fees, brokerage fees, duties and taxes imported into your country.
FAQ:
Q: How can I trace my order of C080EAT02.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of C080EAT02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of C080EAT02.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of C080EAT02.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
