10.4 inch 640*480 Original LCD Screen panel EL640.480-AM1
EL640.480-AM1 AG Product details :
| Lumineq LCD Screen EL640.480-AM1 AG |
| Brand | Lumineq |
| Model P/N | EL640.480-AM1 AG |
| Diagonal Size | 10.4" |
| Panel Type | EL, EL |
| Resolution | 640×480, VGA 77PPI |
| Pixel Format | Rectangle |
| Active Area | 211.1(W)×158.3(H) mm |
| Outline Size | 266(W)×192(H) mm |
| Surface | Antiglare |
| Brightness | 65 cd/m² (Typ.) |
| Contrast Ratio | 40:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Best View on | Symmetry |
| Response Time | 1 (Max.) |
| Display Colors | Mono(Yellow) |
| Lamp Type | self , 10K hours |
| Frequency | 120Hz |
| Touch Screen | Without |
| Panel Weight | 650g |
| Application | Industrial |
| Signal Interface | Parallel Data (2ch, 4-bit) , 20 pins Connector |
| Input Voltage | 5/12V (Typ.)(VL/VH) |
| Environment | Operating Temp.: -5 ~ 55 °C ; Storage Temp.: -40 ~ 75 °C |
| 10.4 inch 640*480 Original LCD Screen panel EL640.480-AM1 |
EL640.480-AM1 AG Payment:
When buying on Alibaba, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
EL640.480-AM1 AG Shippment & Packing
EL640.480-AM1 AG Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
EL640.480-AM1 AG Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
EL640.480-AM1 AG FAQ:
Q: How long the warranty of EL640.480-AM1 AG ?
A: 90 DAYS.
Q: How to order lcd panel EL640.480-AM1 AG ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of Lumineq EL640.480-AM1 AG ?
A: The order are shipped within 1-2 working days after received the payment.
Q: What happen if Lumineq tft-lcd EL640.480-AM1 AG I received can't work ?
A: Our Lumineq EL640.480-AM1 AG was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
|
|

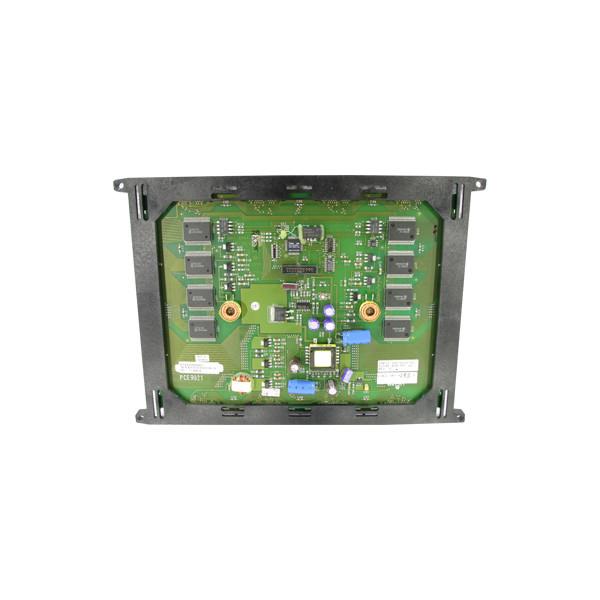

10.4 inch 640*480 Original LCD Screen panel EL640.480-AM1 Images
|
