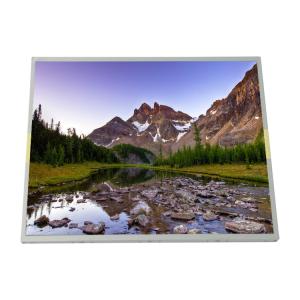

HSD190MEN3-A02 19.0 Inch LCD Display Panel RGB 1280×1024 SXGA 86PPI

  • 1
  • 2
  • 3

Brand Name : HannStar

Model Number : HSD190MEN3-A02

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : HSD190MEN3-A02

Diagonal Size : 19.0"

Resolution : 1280(RGB)×1024, SXGA 86PPI

Active Area : 376.32(W)×301.056(H) mm

Bezel Opening : 380.2(W)×305.0(H) mm

Outline Dim. : 396(W)×324(H)×17(D) mm

Treatment : Antiglare, Hard coating (2H)

Weight : 2.25Kgs (Typ.)

Designed For : Desktop Monitor

Interface Type : LVDS (2 ch, 8-bit) 30 pins Connector

Contact Now

HSD190MEN3-A02 19.0 inch LCD display Panel

HSD190MEN3-A02 LCD Panel Product details :

HannStar LCD Screen HSD190MEN3-A02
Panel Brand HannStar
Model P/N HSD190MEN3-A02
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×1024, SXGA 86PPI
Pixel Format RGB Vertical Stripe
Active Area 376.32(W)×301.056(H) mm
Bezel Opening 380.2(W)×305.0(H) mm
Outline Dim. 396(W)×324(H)×17(D) mm
Treatment Antiglare, Hard coating (2H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Response Time 1.2/3.8 (Typ.)(Tr/Td)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M 73% NTSC
Light Source CCFL [4 pcs] , 40K hours , W/O Driver
Weight 2.25Kgs (Typ.)
Designed For Desktop Monitor
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
HSD190MEN3-A02 19.0 inch LCD display Panel

HSD190MEN3-A02 LCD Monitor Note:

Thank you for considering our HSD190MEN3-A02 LCD monitor for your needs. We would like to inform you that due to the dynamic nature of the market, prices and quantities for these items can change rapidly. As a result, the price listed here may not be accurate at the time of your viewing.

To obtain the most up-to-date and accurate pricing information, we kindly request you to make an offer or contact us directly. Our dedicated team is ready to assist you promptly and provide you with the correct pricing for your order.

Additionally, please note that our website showcases only a small selection of the diverse range of products we offer. If you have specific requirements or need other products not featured on the website, we encourage you to reach out to us directly. By doing so, you can benefit from our personalized service and potentially secure a much better price for the products you are interested in.

We are committed to ensuring your satisfaction and providing you with the best possible value for your investment. Your inquiries and requests are important to us, and we look forward to the opportunity to serve you.

HSD190MEN3-A02 LCD Panel Shipping and Package :
HSD190MEN3-A02 19.0 Inch LCD Display Panel RGB 1280×1024 SXGA 86PPI

HSD190MEN3-A02 LCD Monitor Delivery Details:

At YONGS, we prioritize efficiency and prompt service. Upon receiving your payment, we commit to dispatching all HSD190MEN3-A02 LCD monitors within 1-5 working days. Our mission is to get your order to you as swiftly as possible.

To ensure transparency in the shipping process, we provide a tracking number for all parcels. This allows you to conveniently monitor the status and location of your shipment as it makes its way to you.

We offer both Expedited and Standard International Shipping options through trusted courier services such as DHL, TNT, FEDEX, and EMS. For deliveries to the USA, you can expect your order to arrive within 3-4 working days. For other countries, the standard delivery timeframe is 4-8 working days. Please note that international deliveries may vary due to factors beyond our control, including the policies of the courier company and customs regulations in the destination country.

It's important to be aware that import duties and taxes are not included in the item price or shipping charges. As the buyer, you are responsible for any applicable customs duties and taxes imposed by your local customs office. We recommend checking with your local customs authorities to understand the specific charges that may apply to your order.


HSD190MEN3-A02 LCD Monitor Packing:

Ensuring the safe and secure delivery of your HSD190MEN3-A02 LCD monitor is our top priority. Our packing process is designed to provide maximum protection during transportation.

Outer Packing:
We utilize strong and durable cartons for the outer packing of your LCD monitor. These cartons are specifically chosen for their robustness, providing an extra layer of defense against potential external impacts. This outer layer acts as a shield, safeguarding your purchase from any mishandling that may occur during transit.

Inner Packing:
To further enhance the protection of your LCD monitor, we use high-quality foam for the inner packing. The foam is strategically placed to absorb shocks and vibrations, preventing any potential damage during the shipping process. This ensures that your monitor arrives at its destination in the same pristine condition it left our facility.

Strength and Safety:
The combination of a strong carton for outer packing and foam for inner packing creates a robust packaging solution. This method has been carefully chosen to guarantee that your LCD monitor is strong and safe enough to withstand the rigors of transportation. Our goal is to eliminate the risk of breakage, providing you with a product that meets the highest standards of quality upon arrival.

ly.


HSD190MEN3-A02 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of HSD190MEN3-A02 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How can I trace my order of HSD190MEN3-A02 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods HSD190MEN3-A02 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
