Brand Name : Kyocera
Model Number : KCS6448JSTT-X6
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : KCS6448JSTT-X6
Diagonal Size : 10.4"
Panel Type : CSTN-LCD, LCM
Resolution : 640(RGB)×480, VGA 76PPI
Pixel Format : RGB Vertical Stripe
Active Area : 211.2(W)×158.4(H) mm
Application : Industrial
Backlight : 1 pcsCCFL, 40K hours, Optional
KCS6448JSTT-X6 10.4 inch 640*480 LCD Screen Display
KCS6448JSTT-X6 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCS6448JSTT-X6 |
Diagonal Size | 10.4" |
Panel Type | CSTN-LCD, LCM |
Resolution | 640(RGB)×480, VGA 76PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 216.2(W)×163.4(H) mm |
Outline Size | 242.5(W)×179(H)×7.5(D) mm |
Surface | Antiglare |
Brightness | 100 cd/m² (Typ.) |
Contrast Ratio | 25:1 (Typ.) (TM) |
Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) |
Display Mode | STN, Normally Black, Transmissive |
Best View on | - |
Response Time | 160/80 (Typ.)(Tr/Td) |
Display Colors | Color 41%NTSC |
Lamp Type | 1 pcsCCFL, 40K hours, Optional |
Frequency | 75Hz |
Touch Screen | Without |
Panel Weight | 400g (Typ.) |
Application | Industrial |
Signal Interface | Parallel Data (1ch, 8-bit), 31 pins Connector |
Input Voltage | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temp.: 0 ~ 40 °C ;Storage Temp.: -20 ~ 60 °C |
KCS6448JSTT-X6 10.4 inch 640*480 LCD Screen Display |
KCS6448JSTT-X6 LCD Panel Shipping and Package :
Q: What happen if the lcd panel KCS6448JSTT-X6 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings ?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
![]() |

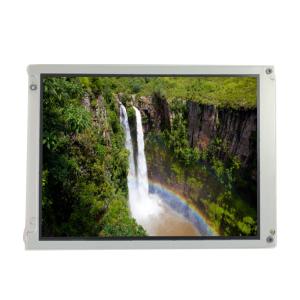

KCS6448JSTT-X6 10.4 inch 640*480 LCD Screen Display Images |
