Brand Name : Kyocera
Model Number : KCS057QV1AA-A03
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : KCS057QV1AA-A03
Diagonal Size : 5.7"
Panel Type : CSTN-LCD, LCM
Resolution : 320(RGB)×240, QVGA 70PPI
Pixel Format : RGB Vertical Stripe
Active Area : 115.2(W)×86.4(H) mm
Refresh Rate : 75Hz
Used for : Industrial
KCS057QV1AA-A03 5.7 inch 320*240 LCD Screen For Kyocera
KCS057QV1AA-A03 LCD Panel Product details :
Brand | Kyocera |
Model P/N | KCS057QV1AA-A03 |
Diagonal Size | 5.7" |
Panel Type | CSTN-LCD, LCM |
Resolution | 320(RGB)×240, QVGA 70PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 115.2(W)×86.4(H) mm |
Bezel Opening | 121.40(W)×92.62(H) mm |
Outline (mm) | 154.6×114.8×9 (H×V×D) |
Treatment | Antiglare |
Luminance | - |
Contrast Ratio | 25 : 1 (Typ.) (TM) |
Viewing Angle | 50/50/45/60 (Typ.)(CR≥2) |
Response | 220/110 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | STN, Normally Black, Transmissive |
Color Depth | Color |
Backlight | CCFL, No Driver |
Mass | 200g |
Used for | Industrial |
Refresh Rate | 75Hz |
Touchscreen | Without |
Signal Type | Parallel Data (1ch, 8-bit), Connector |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
KCS057QV1AA-A03 5.7 inch 320*240 LCD Screen For Kyocera |
KCS057QV1AA-A03 LCD Panel Shipping and Package :
KCS057QV1AA-A03 LCD Panel FAQ :
Q: Do you accept the KCS057QV1AA-A03 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
![]() |

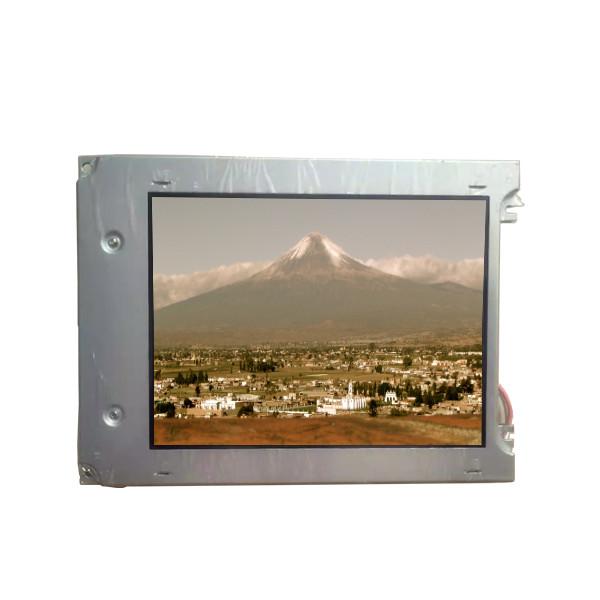

KCS057QV1AA-A03 5.7 inch 320*240 LCD Screen For Kyocera Images |
