Brand Name : BOE
Model Number : DV320FHB-N02
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV320FHB-N02
Diagonal Size : 32.0"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 1920(RGB)×1080, FHD 69PPI
Pixel Format : RGB Vertical Stripe
Luminance : 698.4(W)×392.85(H) mm
Used for : Digital Signage
Touch Panel : Without
32.0 inch 1920*1080 DV320FHB-N02 LCD Screen Display for Digital Signage
DV320FHB-N02 LCD Panel Product details :
Brand | BOE |
Model P/N | DV320FHB-N02 |
Diagonal Size | 32.0" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1920(RGB)×1080, FHD 69PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 698.4(W)×392.85(H) mm |
Outline(mm) | 708.4(W)×405.4(H)×1.35(D) |
Luminance | 0 (cd/m²) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Good View at | Symmetry |
Glass Thickness | 0.50+0.50 mm |
Color Depth | 16.7M 74% NTSC |
Mass | 850g (Typ.) |
Refresh Rate | 60Hz |
Treatment | Antiglare (Haze 1%), Hard coating (2H) |
Contrast Ratio | 1200 : 1 (Typ.) (TM) |
Work Mode | ADSDS, Normally Black, Transmissive |
Response | 8 (Typ.)(G to G) ms |
Transmissivity | 5.0% (Typ.)(with Polarizer) |
Backlight | No B/L |
Used for | Digital Signage |
Touchscreen | Without |
Driver IC list | Built-inCOF6 sourcechips |
Signal Type | LVDS (2 ch, 8-bit), 51 pins Connector |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
32.0 inch 1920*1080 DV320FHB-N02 LCD Screen Display for Digital Signage |
DV320FHB-N02 LCD Panel Shipping and Package :
DV320FHB-N02 LCD Panel FAQ :
Q: How long will I receive my goods of lcd DV320FHB-N02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order DV320FHB-N02 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
![]() |

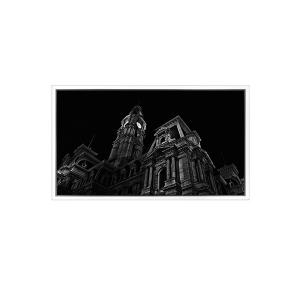

32.0 inch 1920*1080 DV320FHB-N02 LCD Screen Display for Digital Signage Images |
