Brand Name : BOE
Model Number : DV270FHB-N20
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV270FHB-N20
Diagonal Size : 27.0"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 1920(RGB)×1080, FHD 81PPI
Pixel Format : RGB Vertical Stripe
Luminance : 597.888(W)×336.312(H) mm
Used for : Digital Signage
Touch Panel : Without
27.0 inch 1920*1080 DV270FHB-N20 LCD Screen for BOE
DV270FHB-N20 LCD Panel Product details :
Brand | BOE |
Model P/N | DV270FHB-N20 |
Diagonal Size | 27.0" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1920(RGB)×1080, FHD 81PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 597.888(W)×336.312(H) mm |
Outline(mm) | 607.048(W)×346.642(H)×1.32(D) |
Luminance | 0 (cd/m²) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Good View at | Symmetry |
Color Depth | 16.7M 99% sRGB |
Mass | 654g (Typ.) |
Refresh Rate | 60Hz |
Treatment | Antiglare (Haze 2.5%), Hard coating (3H) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Work Mode | ADS, Normally Black, Transmissive |
Response | 14 (Typ.)(G to G) ms |
Transmissivity | 5.7% (Typ.)(with Polarizer) |
Backlight | No B/L |
Used for | Digital Signage |
Touchscreen | Without |
Driver IC list | Built-inCOF8 source chips |
Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
27.0 inch 1920*1080 DV270FHB-N20 LCD Screen for BOE |
DV270FHB-N20 LCD Panel Shipping and Package :
DV270FHB-N20 LCD Panel FAQ :
Q: Do you accept sample orders of DV270FHB-N20 ?
A: Of course!sample order is welcome !
Q: Can You declare my order DV270FHB-N20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of DV270FHB-N20?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of DV270FHB-N20 ?
A: We accept T/T , Paypal , western union .
![]() |

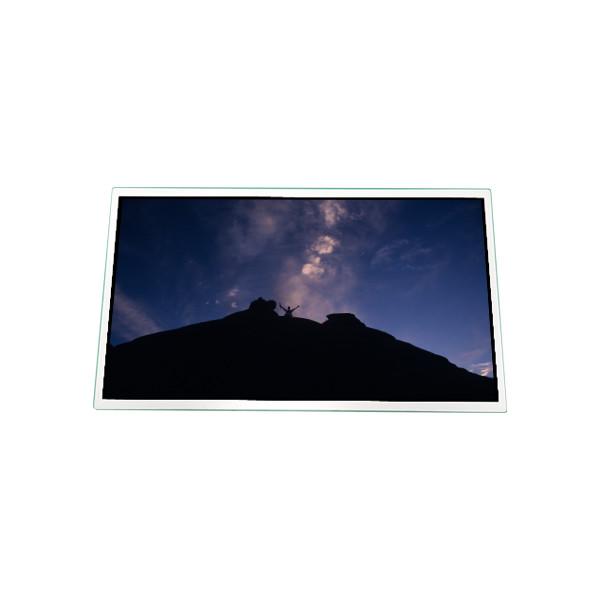

27.0 inch 1920*1080 DV270FHB-N20 LCD Screen for BOE Images |
