Brand Name : BOE
Model Number : DV238FHB-R02
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV238FHB-R02
Diagonal Size : 23.8"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 1920(RGB)×1080, FHD 92PPI
Pixel Format : RGB Vertical Stripe
Luminance : 527.04(W)×296.46(H) mm
Used for : Digital Signage
Touch Panel : Without
23.8 inch 1920*1080 DV238FHB-R02 LCD Screen FOR Digital Signage
DV238FHB-R02 LCD Panel Product details :
Brand | BOE |
Model P/N | DV238FHB-R02 |
Diagonal Size | 23.8" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1920(RGB)×1080, FHD 92PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 527.04(W)×296.46(H) mm |
Outline Size | 534.84(W)×308.06(H)×1.34(D) mm |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Brightness | 0 cd/m² |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Mode | ADS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 14 (Typ.)(G to G) |
Glass Depth | 0.50+0.50 mm |
Display Colors | 16.7M |
Lamp Type | No B/L |
Frequency | 60Hz |
Touch Screen | Without |
Driver IC | COF Built-in 4 source chips |
Panel Weight | 500g (Typ.) |
Application | Digital Signage |
Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
23.8 inch 1920*1080 DV238FHB-R02 LCD Screen FOR Digital Signage |
DV238FHB-R02 LCD Panel Shipping and Package :
DV238FHB-R02 LCD Panel FAQ :
Q: Do you accept sample orders of DV238FHB-R02?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of DV238FHB-R02?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of DV238FHB-R02?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of DV238FHB-R02?
A: We accept T/T , Paypal , western union .
![]() |

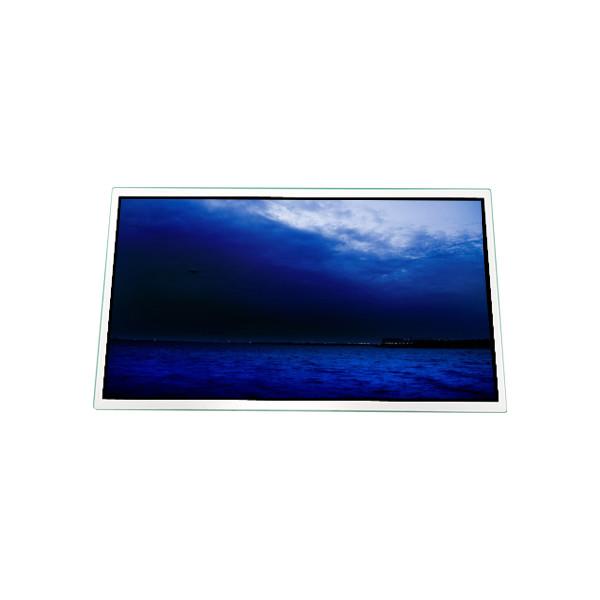

23.8 inch 1920*1080 DV238FHB-R02 LCD Screen FOR Digital Signage Images |
