Brand Name : BOE
Model Number : DV215FHM-R01-4850
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV215FHM-R01-4850
Diagonal Size : 21.5"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×1080, FHD 102PPI
Pixel Format : RGB Vertical Stripe
Luminance : 476.64(W)×268.11(H) mm
Used for : Digital Signage
Touch Panel : Without
21.5 inch 1920*1080 DV215FHM-R01-4850 LCD Display Screen For BOE
DV215FHM-R01-4850 LCD Panel Product details :
Brand | BOE |
Model P/N | DV215FHM-R01-4850 |
Diagonal Size | 21.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 102PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 476.64(W)×268.11(H) mm |
Bezel Opening | 479.8(W)×271.3(H) mm |
Outline Size | 495.6(W)×292.2(H)×11.2(D) mm |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Display Mode | ADS, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 14 (Typ.)(G to G) |
Display Colors | 16.7M 7% |
Lamp Type | WLED, 30K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 1.93Kgs |
Application | Digital Signage |
Signal Interface | LVDS (2 ch, 8-bit), 30 pins Connector |
Input Voltage | 5.5V (Typ.) |
Environment | Operating Temp.: -20 ~ 85 °C ;Storage Temp.: -30 ~ 85 °C |
21.5 inch 1920*1080 DV215FHM-R01-4850 LCD Display Screen For BOE |
DV215FHM-R01-4850 LCD Panel Shipping and Package :
DV215FHM-R01-4850 LCD Panel FAQ :
Q: Can I pay my order of DV215FHM-R01-4850 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of DV215FHM-R01-4850 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of DV215FHM-R01-4850 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
![]() |

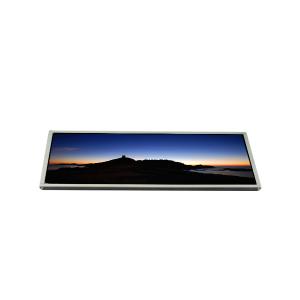

21.5 inch 1920*1080 DV215FHM-R01-4850 LCD Display Screen For BOE Images |
