Brand Name : BOE
Model Number : DV215FHB-N30
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : DV215FHB-N30
Diagonal Size : 21.5"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 1920(RGB)×1080, FHD 102PPI
Pixel Format : RGB Vertical Stripe
Luminance : 476.064(W)×267.786(H) mm
Used for : Digital Signage
Touch Panel : Without
21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module
DV215FHB-N30 LCD Panel Product details :
Brand | BOE |
Model P/N | DV215FHB-N30 |
Diagonal Size | 21.5" |
Panel Type | a-Si TFT-LCD, CELL, FOB |
Resolution | 1920(RGB)×1080, FHD 102PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 476.064(W)×267.786(H) mm |
Outline(mm) | 483.646(W)×278.676(H)×1.32(D) |
Luminance | 0 (cd/m²) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Good View at | Symmetry |
Glass Thickness | 0.50+0.50 mm |
Color Depth | 16.7M 73% NTSC |
Mass | 400g (Typ.) |
Refresh Rate | 60Hz |
Treatment | Antiglare, Hard coating (3H) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Work Mode | ADS, Normally Black, Transmissive |
Response | 14 (Typ.)(G to G) ms |
Transmissivity | 5.6% (Typ.)(with Polarizer) |
Backlight | No B/L |
Used for | Digital Signage |
Touchscreen | Without |
Driver IC list | Built-inCOF6 source chips |
Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module |
DV215FHB-N30 LCD Panel Shipping and Package :
DV215FHB-N30 LCD Panel FAQ :
Q: Can I pay my order of DV215FHB-N30 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of DV215FHB-N30 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods DV215FHB-N30 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of DV215FHB-N30 ?
A: Of course!If you make a large order, we will give you a discount.
![]() |

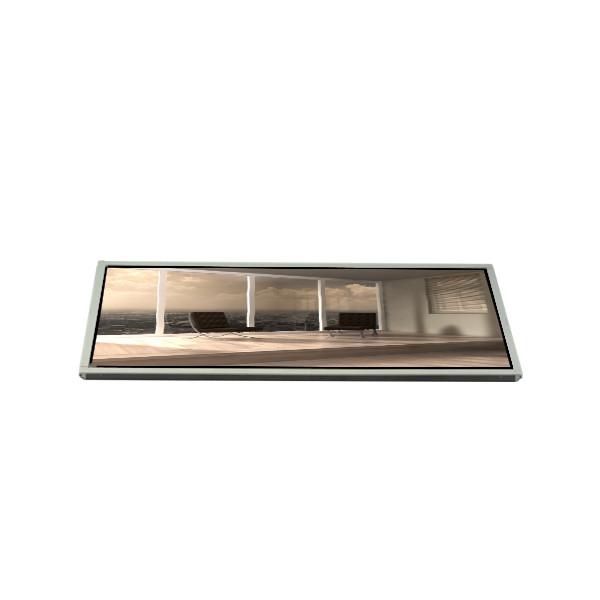

21.5 inch 1920*1080 DV215FHB-N30 TFT LCD Display Screen Module Images |
