Brand Name : Sharp
Model Number : LQ695D3LA01
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LQ695D3LA01
Diagonal Size : 70"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1080×1920(RGB), FHD 31PPI
Pixel Format : RGB Vertical Stripe
Active Area : 865.62(W)×1538.88(H) mm
Used for : Digital Signage、Outdoor High Brightness
Touchscreen : Without
LQ695D3LA01 70.0 inch LCD Panel Screen FOR Outdoor High Brightness
LQ695D3LA01 LCD Panel Product details :
Brand | Sharp |
Model P/N | LQ695D3LA01 |
Diagonal Size | 70" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1080×1920(RGB), FHD 31PPI |
Pixel Format | RGB Horizontal Stripe |
Active Area | 865.62(W)×1538.88(H) mm |
Bezel Opening | - |
Outline(mm) | 928.4 × 1576.8× 121.4 (H×V×D) |
Treatment | Antiglare, Hard coating (2H) |
Luminance | 2000 cd/m² (Typ.) |
Contrast Ratio | 5000 : 1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Response | 6/4 (Typ.)(Tr/Td) ms |
Good View at | Symmetry |
Work Mode | ASV, Normally Black, Transmissive |
Color Depth | 1.07B 72%NTSC |
Backlight | WLED, 50K hours, With LED Driver |
Mass | 40.0±1.5Kgs |
Used for | Digital Signage,Outdoor High Brightness |
Refresh Rate | 120Hz |
Touchscreen | Without |
Signal Type | LVDS (4 ch, 10-bit), 92 pins Connector |
Voltage Supply | 12.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 40 °C |
LQ695D3LA01 70.0 inch LCD Panel Screen FOR Outdoor High Brightness |
LQ695D3LA01 LCD Panel Shipping and Package :
LQ695D3LA01 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of LQ695D3LA01?
A: The order will be shipped within 2-3 working days after received your payment.
Q: If I place order now,when will you ship the goods of LQ695D3LA01?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LQ695D3LA01via credit card ?
A: Yes!you can use your credit card through your Paypal account.
![]() |

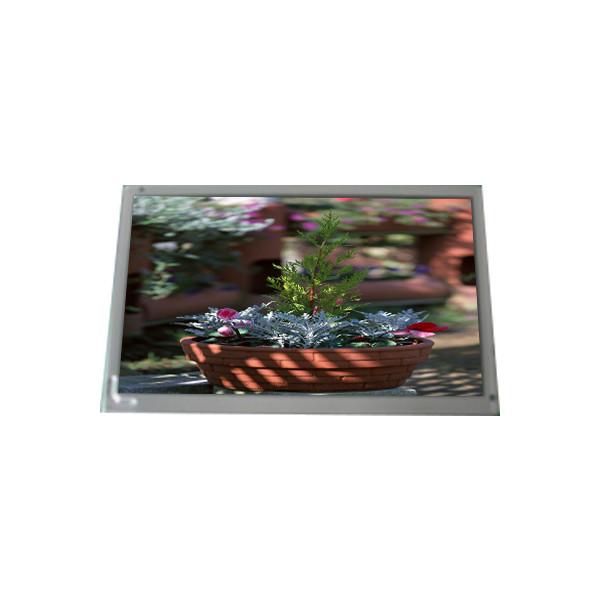

LQ695D3LA01 70.0 inch LCD Panel Screen FOR Outdoor High Brightness Images |
