Brand Name : BOE
Model Number : GV185FHM-N10-3M31
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : GV185FHM-N10-3M31
Diagonal Size : 18.5"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×1080, FHD 119PPI
Pixel Format : RGB Vertical Stripe
Active Area : 408.96(W)×230.04(H) mm
Frame Rate : 60Hz
Designed For : Industrial
GV185FHM-N10-3M31 18.5 inch 1920*1080 LCD Panel FOR Industrial
GV185FHM-N10-3M31 LCD Panel Product details :
BOE LCD SCREEN | |
manufacturer | BOE |
Model P/N | GV185FHM-N10-3M31 |
Diagonal Size | 18.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 119PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 408.96(W)×230.04(H) mm |
Bezel Opening | 410.96(W)×232.04(H) mm |
Outline Size | 430.4(W)×254.6(H)×14.25(D) mm |
Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 1200 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | 30 (Typ.)(Tr+Td) ms |
Good View at | Symmetry |
Work Mode | ADS, Normally Black, Transmissive |
Color Depth | 16.7M 70% NTSC |
Backlight | WLED , 30K hours , With LED Driver |
Mass | 1.80Kgs (Typ.) |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
GV185FHM-N10-3M31 18.5 inch 1920*1080 LCD Panel FOR Industrial |
GV185FHM-N10-3M31 LCD Panel Shipping and Package :
GV185FHM-N10-3M31 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel GV185FHM-N10-3M31 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
![]() |

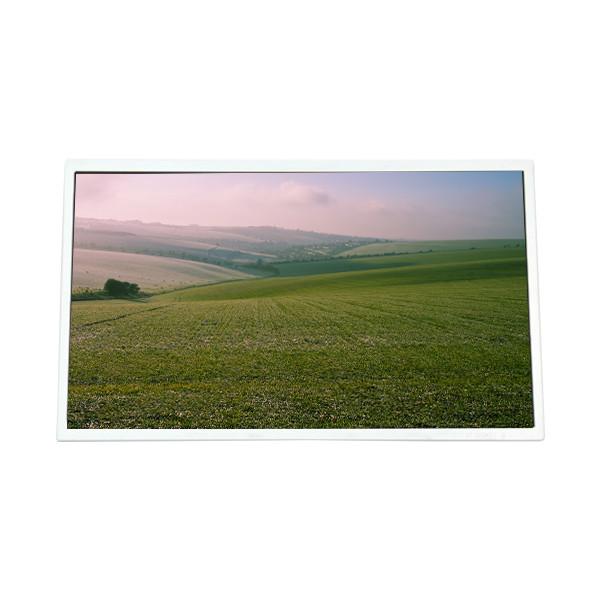

GV185FHM-N10-3M31 18.5 inch 1920*1080 LCD Panel FOR Industrial Images |
