Brand Name : BOE
Model Number : TRA315-001V01
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TRA315-001V01
Diagonal Size : 32.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 3840(RGB)×2160, UHD 139PPI
Pixel Format : RGB Vertical Stripe
Active Area : 697.306(W)×392.234(H) mm
Touch Panel : Without
Application : Industrial
TRA315-001V01 3840*2160 32.0 inch eDP 30 pins LCD Screen for Industrial
TRA315-001V01 LCD Panel Product details :
BOE LCD SCREEN | |
manufacturer | BOE |
Model P/N | TRA315-001V01 |
Diagonal Size | 32.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 3840(RGB)×2160, UHD 139PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 697.306(W)×392.234(H) mm |
Bezel Opening | - |
Outline Dim. | 744(W)×450(H)×19.9(D) mm |
Treatment | Anti Fingerprint + Antiglare, Antireflection |
Luminance | 600 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 14 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating Mode | ADS, Normally Black, Transmissive |
Support Color | 1.07B 70% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Weight | 60Hz |
Touch Panel | PCAP, USB |
Application | Industrial |
Interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) 30 pins Connector |
Power Supply | 10.0V (Typ.) |
Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -50 ~ 70 °C |
TRA315-001V01 3840*2160 32.0 inch eDP 30 pins LCD Screen for Industrial |
TRA315-001V01 LCD Panel Shipping and Package :
TRA315-001V01 LCD Panel FAQ :
Q: What happen if the lcd panel TRA315-001V01 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TRA315-001V01 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
![]() |

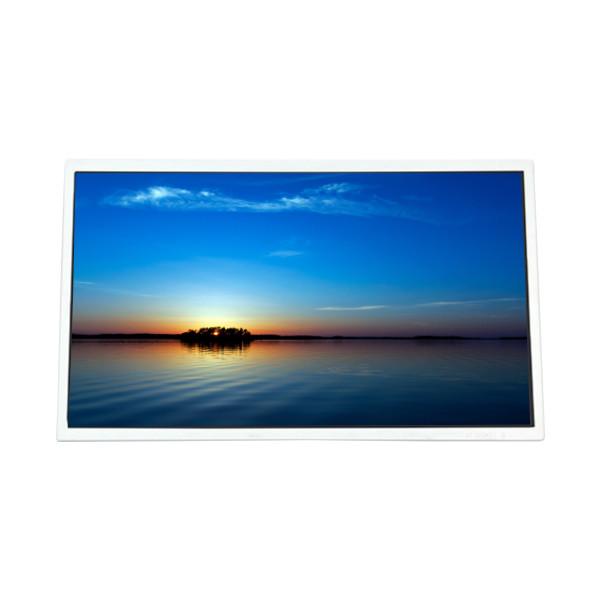

TRA315-001V01 3840*2160 32.0 inch eDP 30 pins LCD Screen for Industrial Images |
