Brand Name : KOE
Model Number : TX09D34VM3CPA
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TX09D34VM3CPA
Diagonal Size : 3.5"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 240(RGB)×320, QVGA 113PPI
Pixel Format : RGB Vertical Stripe
Outline(mm) : 53.64(W)×71.52(H) mm
Brightness : 340 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.) (TM)
Display Colors : 262K 46%NTSC
Application : Handheld & PDA
TX09D34VM3CPA 3.5 inch 240*320 LCD Screen Display Panel
TX09D34VM3CPA LCD Panel Product details :
Brand | HITACHI |
Model P/N | TX09D34VM3CPA |
Diagonal Size | 3.5" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 240(RGB)×320, QVGA 113PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 53.64(W)×71.52(H) mm |
Bezel Opening | - |
Outline Size | 64(W)×86(H)×5.5(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 340 cd/m² (Typ.) |
Contrast Ratio | 300:1 (Typ.) (TM) |
Viewing Angle | 50/80/80/80 (Typ.)(CR≥5) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 3 o'clock |
Response Time | 15/15 (Typ.)(Tr/Td) |
Display Colors | 262K 46%NTSC |
Lamp Type | 3S4PWLED, 40K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | 4-wire Resistive Touch |
Panel Weight | 44.0g (Typ.) |
Application | Handheld & PDA |
Signal Interface | CMOS (1 ch, 6-bit), 50 pinsFPC |
Input Voltage | 3.3/8.45/16.5/-8.05V (Typ.)(VCC/VDH/VGH/VGL) |
Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
TX09D34VM3CPA 3.5 inch 240*320 LCD Screen Display Panel |
TX09D34VM3CPA LCD Panel Shipping and Package :
Q: Can you give me a discount if I need a large quantity of TX09D34VM3CPA ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TX09D34VM3CPA ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of TX09D34VM3CPA ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of TX09D34VM3CPA ?
A: Of course!sample order is welcome !
![]() |

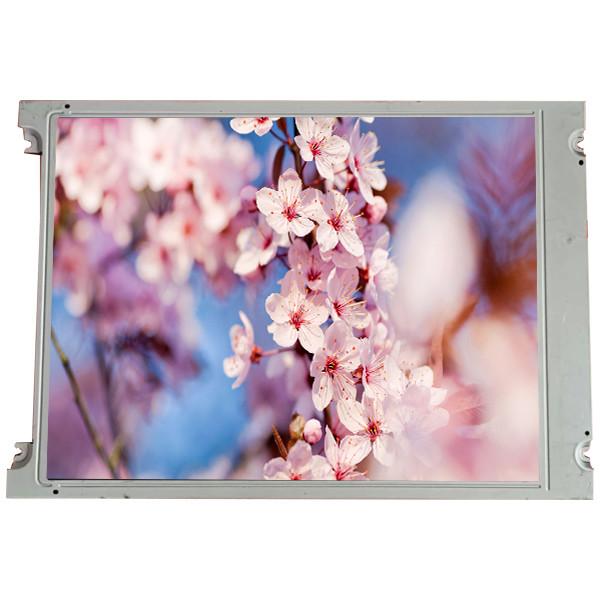

TX09D34VM3CPA 3.5 inch 240*320 LCD Screen Display Panel Images |
