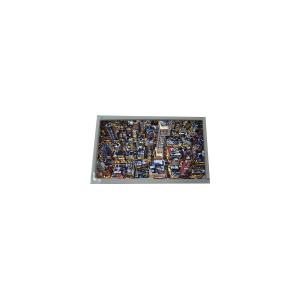

LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module

  • 1
  • 2

Brand Name : Sharp

Model Number : LQ035Q7DH02

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : LQ035Q7DH02

Diagonal Size : 3.5"

Panel Type : a-Si TFT-LCD, LCM

Resolution : 240(RGB)×320, QVGA 113PPI

Pixel Format : RGB Vertical Stripe

Active Area : 53.64(W)×71.52(H) mm

Application : Handheld & PDA

Display Colors : 262K 26%NTSC

Contact Now

LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module

LQ035Q7DH02 LCD Panel Product details :

Brand Sharp
Model P/N LQ035Q7DH02
Diagonal Size 3.5"
Panel Type a-Si TFT-LCD, LCM
Resolution 240(RGB)×320, QVGA 113PPI
Pixel Format RGB Vertical Stripe
Active Area 53.64(W)×71.52(H) mm
Bezel Opening 57.4(W)×75.2(H) mm
Outline Size 65(W)×86.2(H)×4.2(D) mm
Brightness 100 cd/m² (Typ.)
Viewing Angle 40/40/40/50 (Typ.)(CR≥2)
Best View on 6 o'clock
Display Colors 262K 26%NTSC
Frequency 60Hz
Weight 45.0g (Typ.)
Surface Hard coating (3H)
Contrast Ratio 80:1 (Typ.) (TM) 3:1 (Typ.) (RF)
Display Mode TN, Normally White, Transflective
Response Time 30/50 (Typ.)(Tr/Td)
Lamp Type WLED , 10K hours , Without Driver
Touch Screen 4-wire Resistive Touch
Application Handheld & PDA
Signal Interface Parallel RGB (1 ch, 6-bit), 50 pinsFPC
Input Voltage 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Environment Operating Temp.: -10 ~ 70 °C ;Storage Temp.: -25 ~ 70 °C
LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module

LQ035Q7DH02 LCD Panel Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.

LQ035Q7DH02 LCD Panel Shipping and Package :

LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module

LQ035Q7DH02 LCD Panel Shipping Information :
Shipping Agency: We utilize a reputable and efficient shipping agency known for its reliability and professionalism. Our goal is to ensure fast and secure delivery of your order.
Delivery Time: Typically, our standard delivery time ranges from 3 to 7 business days for shipments worldwide. This timeframe is subject to regional variations and potential delays beyond our control.
Additional Charges: Please note that import duties, taxes, and other related charges are not included in the item price or shipping charges. These charges, if applicable, are the responsibility of the buyer and may be assessed upon delivery by customs authorities in the destination country.
LQ035Q7DH02 LCD Panel Return Note :
Model Confirmation: When placing an order for our LCD screen, please ensure that the model number matches exactly with the one you intend to replace. This is crucial to avoid purchasing the wrong product that may not function properly in your device.
Installation Caution: Before confirming that the screen does not work properly, refrain from using adhesive to attach our screen to your equipment. If adhesive is applied and the screen is installed, we regret that we cannot accept returns or provide refunds. This precaution is essential to ensure that our products remain in their original condition for potential troubleshooting or returns.
LQ035Q7DH02 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ035Q7DH02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LQ035Q7DH02 via credit card ?

A: Yes!you can use your credit card through your Paypal account

Q: How can I trace my order of LQ035Q7DH02 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .


China LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module factory

LQ035Q7DH02 3.5 inch 240*320 113PPI Touch Screen LCD Module Images
