Brand Name : Samsung
Model Number : LTM190U1-L02
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LTM190U1-L02
Diagonal Size : 19.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1600(RGB)×1200, UXGA 105PPI
Pixel Format : RGB Vertical Stripe
Active Area : 386.4(W)×289.8(H) mm
Touchscreen : Without
Designed For : Industrial、Outdoor High Brightness
LTM190U1-L02 19.0 inch 1600*1200 LCD Screen lcd Module Industrial
LTM190U1-L02 LCD Panel Product details :
Brand | Samsung |
Model P/N | LTM190U1-L02 |
Diagonal Size | 19.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1600(RGB)×1200, UXGA 105PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 386.4(W)×289.8(H) mm |
Bezel Opening | 390.4(W)×293.8(H) mm |
Outline Size | 414.6(W)×325.6(H)×24.8(D) mm |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Brightness | 750 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Display Mode | PVA, Normally Black, Transmissive |
Best View on | Symmetry |
Response Time | 15/10 (Typ.)(Tr/Td) |
Display Colors | 16.7M |
Lamp Type | 6 pcsCCFL, 30K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 3.10Kgs (Max.) |
Application | Industrial,Outdoor High Brightness |
Signal Interface | OpenLDI, 43 pinsConnector |
Input Voltage | 5.0V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
LTM190U1-L02 19.0 inch 1600*1200 LCD Screen lcd Module Industrial |
LTM190U1-L02 LCD Panel Shipping and Package :
LTM190U1-L02 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LTM190U1-L02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LTM190U1-L02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods LTM190U1-L02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
![]() |

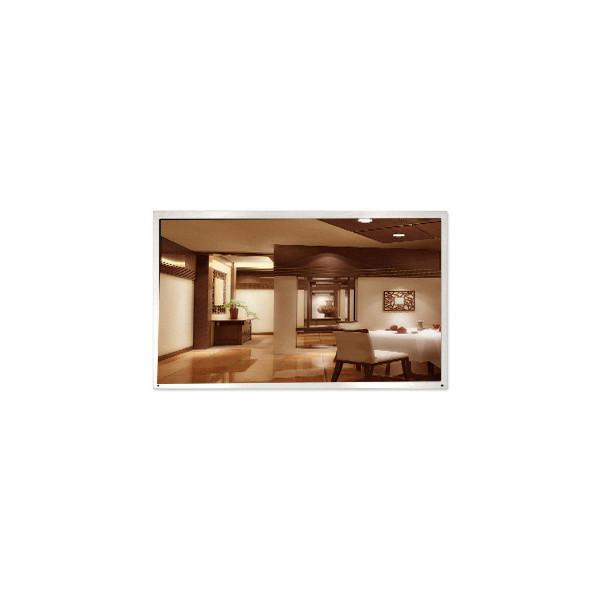

LTM190U1-L02 19.0 inch 1600*1200 LCD Screen lcd Module Industrial Images |
