Brand Name : BOE
Model Number : QS055FHM-NB0
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : QS055FHM-NB0
Diagonal Size : 5.5"
Panel Type : LTPS TFT-LCD, LCM
Resolution : 1080(RGB)×1920, FHD 403PPI
Pixel Format : RGB Vertical Stripe
Active Area : 68.04(W)×120.96(H) mm
Best View on : Symmetry
Color Depth : 16.7M 70%NTSC
Lamp Type : WLED, W/O Driver
Used for : Home Appliance
QS055FHM-NB0 5.5 inch 1080*1920 LCD Panel Display
QS055FHM-NB0 LCD Panel Product details :
Brand | BOE |
Model P/N | QS055FHM-NB0 |
Diagonal Size | 5.5" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1080(RGB)×1920, FHD 403PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 68.04(W)×120.96(H) mm |
Bezel Opening | - |
Outline Dim. | 69.94(H)×127.35(V) mm |
Treatment | - |
Luminance | 480 cd/m² (Typ.) |
Contrast Ratio | 1200:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | ADS, Normally Black, Transmissive |
Support Color | 16.7M 70%NTSC |
Light Source | WLED, W/O Driver |
Weight | - |
Designed For | Home Appliance |
Frame Rate | 60Hz |
Touch Panel | PCAP, I²C |
Interface Type | MIPI, 34 pinsConnector |
Power Supply | 1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C |
QS055FHM-NB0 LCD Panel Shipping and Package :
QS055FHM-NB0 LCD Panel FAQ :
Q: How long is the warranty of QS055FHM-NB0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of QS055FHM-NB0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of QS055FHM-NB0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods QS055FHM-NB0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
![]() |

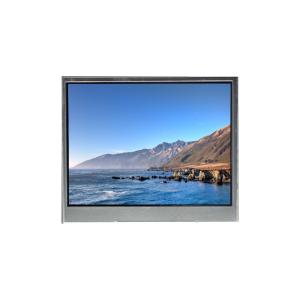

QS055FHM-NB0 5.5 inch 1080*1920 LCD Panel Display Images |
