Brand Name : TIANMA
Model Number : TL061FYMF01
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TL061FYMF01
Diagonal Size : 6.2"
Panel Type : LTPS TFT-LCD, CELL, Full Cell
Resolution : 1080(RGB)×2312 415PPI
Pixel Format : RGB Vertical Stripe
Active Area : 66.096(W)×141.494(H) mm
Touch Panel : In-Cell Touch
Designed For : Mobile Phone
Hot Sell 1080*2312 TL061FYMF01 6.2 inch LCD Sreen for Mobile Phone
TL061FYMF01 LCD Panel Product details :
Brand | TIANMA |
Model P/N | TL061FYMF01 |
Diagonal Size | 6.2" |
Panel Type | LTPS TFT-LCD, CELL, Full Cell |
Resolution | 1080(RGB)×2312 415PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 66.096(W)×141.494(H) mm |
Bezel Opening | - |
Outline Dim. | 67.596(H)×144.144(V)×0.25(D) mm |
Treatment | - |
Luminance | 0 cd/m² |
Contrast Ratio | 1500:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 26 (Max.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating Mode | SFT, Normally Black, Transmissive |
Plate Thickness | 0.125+0.125 mm |
Transmittance | - |
Support Color | 16.7M 100%DCI-P3 |
Light Source | No B/L |
Weight | TBD |
Designed For | Mobile Phone |
Frame Rate | - |
Touch Panel | In-Cell Touch |
D-IC Detail | COGTD4320 |
Power Supply | 1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE) |
Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -55 ~ 110 °C |
TL061FYMF01 LCD Panel Shipping and Package :
TL061FYMF01 LCD Panel FAQ :
Q: How do you ship my goods TL061FYMF01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of TL061FYMF01 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel TL061FYMF01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
![]() |

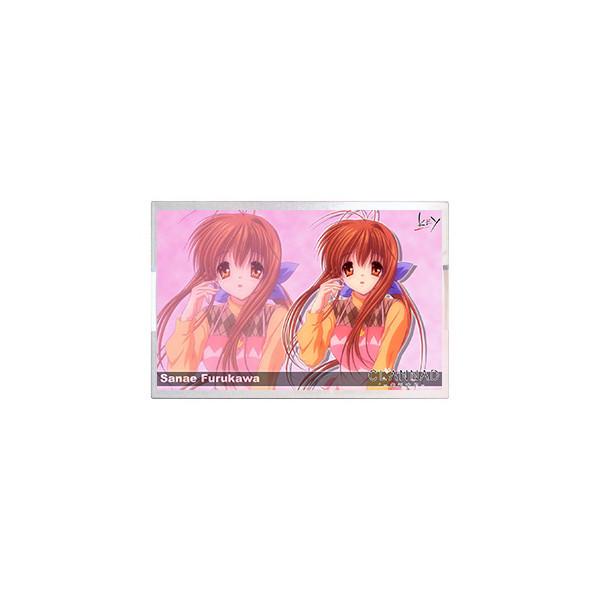

Hot Sell 1080*2312 TL061FYMF01 6.2 inch LCD Sreen for Mobile Phone Images |
