Brand Name : TIANMA
Model Number : TL063FYMC11
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TL063FYMC11
Diagonal Size : 6.3"
Panel Type : LTPS TFT-LCD, CELL, Full Cell
Resolution : 1080(RGB)×2280 403PPI
Pixel Format : RGB Vertical Stripe
Active Area : 68.04(W)×143.64(H) mm
Touch Screen : In-Cell Touch
Designed For : Mobile Phone
Voltage Supply : 1.8/5.5/-5.5V (Typ.)(IOVCC/AVDD/AVEE)
Max. Ratings : Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
original 1080*2280 TL063FYMC11 6.3 inch LCD Sreen Display
TL063FYMC11 LCD Panel Product details :
Brand | TIANMA |
Model P/N | TL063FYMC11 |
Diagonal Size | 6.3" |
Panel Type | LTPS TFT-LCD, CELL, Full Cell |
Resolution | 1080(RGB)×2280 403PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 68.04(W)×143.64(H) mm |
Bezel Opening | - |
Outline(mm) | 69.54 × 148.09× 0.28 (H×V×D) |
Treatment | - |
Luminance | 0 cd/m² |
Contrast Ratio | 1500 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
Response | 35 (Max.)(Tr+Td) ms |
Good View at | Symmetry |
Work Mode | SFT, Normally Black, Transmissive |
Glass Thickness | 0.14+0.14 mm |
Transmissivity | - |
Color Depth | 16.7M 100%sRGB |
Backlight | No B/L |
Mass | TBD |
Used for | Mobile Phone |
Refresh Rate | - |
Touchscreen | In-Cell Touch |
Driver IC list | SuggestCOGNT36672, NT36670, FT8719 |
Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/AVDD/AVEE) |
Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
TL063FYMC11 LCD Panel Shipping and Package :
TL063FYMC11 LCD Panel FAQ :
Q: How do you ship my goods TL063FYMC11 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen TL063FYMC11 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of TL063FYMC11 ?
A: 90 days warranty .
![]() |

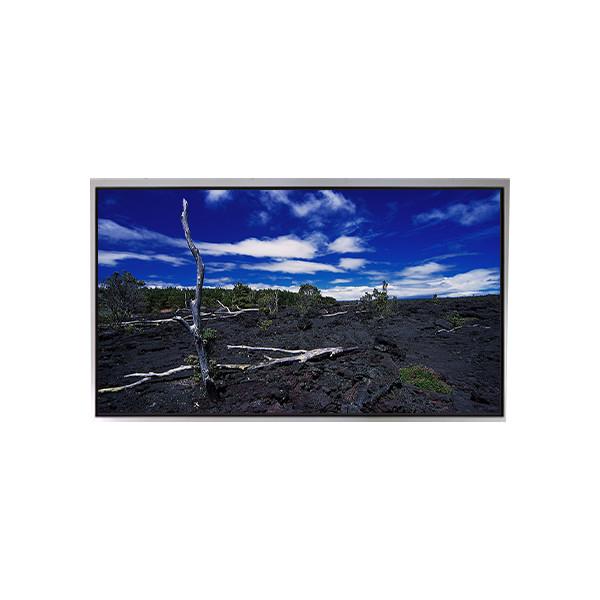

original 1080*2280 TL063FYMC11 6.3 inch LCD Sreen Display Images |
