TL057BFXS05-00 5.7 inch LCD Screen 1440*2560 LCD Display

Brand Name : TIANMA

Model Number : TL057BFXS05-00

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 Unit/Units per Month

Delivery Time : 7 Days

Packaging Details : Original packaging/conventional packaging box

Model Name : TL057BFXS05-00

Diagonal Size : 5.7"

Resolution : 1440(RGB)×2560, Quad-HD 515PPI

Active Area : 70.978(W)×126.182(H) mm

Outline Dim. : 72.28×132.28×0.47 (H×V×D)

Luminance : 0 cd/m²

Contrast Ratio : 1400 : 1 (Typ.) (TM)

Panel Type : LTPS TFT-LCD, CELL, FOG

Interface Type : MIPI (4 data lanes), Connector60 pins

Refresh Rate : 60Hz

Contact Now

TL057BFXS05-00 5.7 inch LCD Screen 1440*2560 LCD Display

TL057BFXS05-00 LCD Panel Product details :

Brand TIANMA
Model P/N TL057BFXS05-00
Diagonal Size 5.7"
Panel Type LTPS TFT-LCD, CELL, FOG
Resolution 1440(RGB)×2560, Quad-HD 515PPI
Pixel Format RGB Vertical Stripe
Active Area 70.978(W)×126.182(H) mm
Bezel Opening -
Outline (mm) 72.28×132.28×0.47 (H×V×D)
Treatment Antiglare (Haze 2%), Hard coating (2H)
Luminance 0 cd/m²
Contrast Ratio 1400 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Response 30 (Typ.)(Tr+Td), 35 (Typ.)(G to G) ms
Good View at Symmetry
Work Mode SFT, Normally Black, Transmissive
Glass Thickness 0.15+0.15 mm
Transmissivity 5.6% (Typ.)(with Polarizer)
Color Depth 16.7M 100%sRGB
Backlight No B/L
Mass TBD
Used for Mobile Phone
Refresh Rate 60Hz
Touchscreen In-Cell Touch, I²C
Signal Type MIPI (4 data lanes), Connector60 pins
Voltage Supply 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN)
Max. Ratings Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 75 °C
TL057BFXS05-00 LCD Display Note :

Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.

Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.

Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.

TL057BFXS05-00 LCD Panel Shipping and Package :TL057BFXS05-00 5.7 inch LCD Screen 1440*2560 LCD Display

SHIPPING Information for TL057BFXS05-00 LCD Display :

We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.

Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.

Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.

To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.

Reminder for TL057BFXS05-00 LCD Display Purchase :

Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.

To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.

TL057BFXS05-00 LCD Panel FAQ :

Q: How can I trace my order of TL057BFXS05-00 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of TL057BFXS05-00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of TL057BFXS05-00 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of TL057BFXS05-00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.


China TL057BFXS05-00 5.7 inch LCD Screen 1440*2560 LCD Display factory

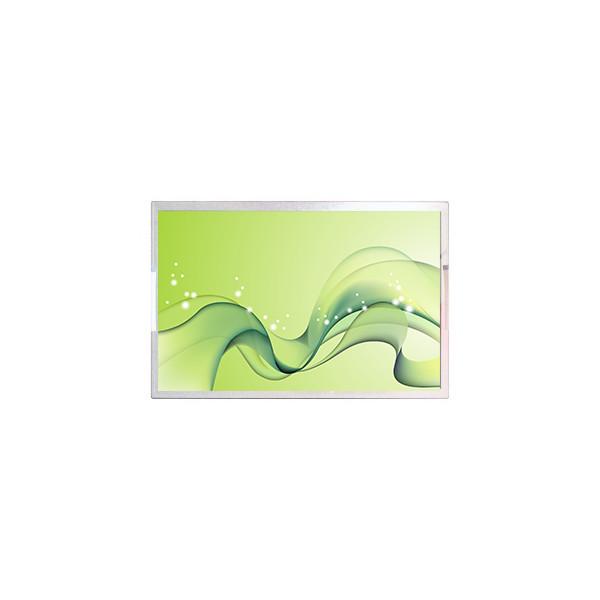

TL057BFXS05-00 5.7 inch LCD Screen 1440*2560 LCD Display Images
