Brand Name : Sharp
Model Number : LS060B1SX02
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LS060B1SX02
Diagonal Size : 6.0"
Panel Type : CG-Silicon, LCM
Resolution : 1080(RGB)×2160 403PPI
Pixel Format : RGB Vertical Stripe
Active Area : 68.04(W)×136.08(H) mm
Best View on : Symmetry
Lamp Type : 7S3P WLED, Without Driver
Display Colors : 16.7M
Application : Mobile Phone
LS060B1SX02 6.0 inch 1080*2160 LCD Screen Display Module
LS060B1SX02 LCD Panel Product details :
Brand | Sharp |
Model P/N | LS060B1SX02 |
Diagonal Size | 6.0" |
Panel Type | CG-Silicon, LCM |
Resolution | 1080(RGB)×2160 403PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 68.04(W)×136.08(H) mm |
Bezel Opening | - |
Outline Size | 69.64(W)×140.33(H) mm |
Viewing Angle | - |
Best View on | Symmetry |
Display Colors | 16.7M |
Frequency | 60Hz |
Weight | 19.8g (Typ.) |
Surface | - |
Display Mode | New Mode2, Normally Black, Transmissive |
Response Time | - |
Lamp Type | 7S3P WLED, Without Driver |
Touch Screen | PCAP, I²C |
Application | Mobile Phone |
Signal Interface | MIPI (4 data lanes), 40 pinsConnector |
Input Voltage | 1.8/5.8/-5.8V (Typ.)(VDDIO/VSP/VSN) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
WLED LCD Panel LS060B1SX02 6.0 inch LCD Touch Display Screen |
LS060B1SX02 LCD Panel Shipping and Package :
Q: Can you test the lcd panel LS060B1SX02 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order LS060B1SX02 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order LS060B1SX02 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd LS060B1SX02 ?
A: 90 days .
![]() |

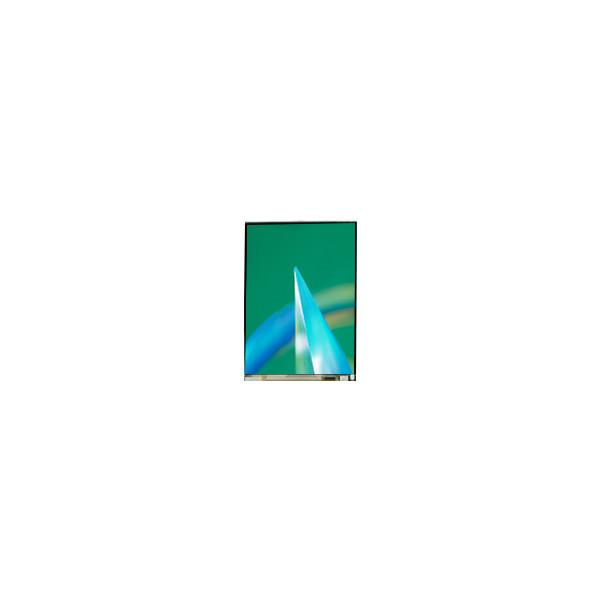

LS060B1SX02 6.0 inch 1080*2160 LCD Screen Display Module Images |
