Brand Name : TIANMA
Model Number : TM101JVKP01-00
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TM101JVKP01-00
Diagonal Size : 10.1"
Panel Type : a-Si TFT-LCD, Assembly
Resolution : 1280(RGB)×720, WXGA 145PPI
Pixel Format : RGB Vertical Stripe
Active Area : 223.68(W)×125.82(H) mm
Brightness : 650 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.) (TM)
Display Colors : 16.7M 73% NTSC
Application : Automotive Display
TM101JVKP01-00 10.1 inch 1280*720 LCD Screen Display
TM101JVKP01-00 LCD Panel Product details :
Brand | TIANMA |
Model P/N | TM101JVKP01-00 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, Assembly |
Resolution | 1280(RGB)×720, WXGA 145PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 223.68(W)×125.82(H) mm |
Bezel Opening | - |
Outline Dim. | 243.1(W)×148.1(H) ×13.4(D) mm |
Treatment | Anti Fingerprint + Antiglare, Hard coating (2H),Reflection 4.5% (Max.) |
Luminance | 650 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 35 (Max.)(Tr+Td) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Operating Mode | SFT, Normally Black, Transmissive |
Support Color | 16.7M 73% NTSC |
Light Source | WLED [7S3P] , 10K hours , W/O Driver |
Weight | 540±54g |
Designed For | Automotive Display |
Frame Rate | 60Hz |
Touch Panel | PCAP |
Interface Type | LVDS (2 ch, 8-bit) , 40 pins FPC |
Power Supply | 3.3/6.0/-6.0/14/-10V (Typ.)(VDD/VDDP/VDDN/VGH/VGL) |
Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
TM101JVKP01-00 LCD Panel Shipping and Package :
Q: Can you tested the TM101JVKP01-00 before shipping ?
A: Of course , our lcd panel TM101JVKP01-00 was Strictly tested before shipping.
Q: How to order TM101JVKP01-00 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel TM101JVKP01-00 received can't work ?
A: TM101JVKP01-00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
![]() |

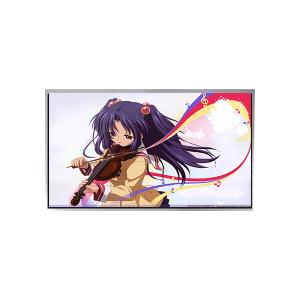

TM101JVKP01-00 10.1 inch 1280*720 LCD Screen Display Images |
