Brand Name : HannStar
Model Number : HSD050BHW8-C00-T00
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : HSD050BHW8-C00-T00
Diagonal Size : 5.0"
Panel Type : a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution : 720(RGB)×1280, WXGA 296PPI
Pixel Format : RGB Vertical Stripe
Active Area : 61.776(W)×109.824(H) mm
Application : Mobile Phone
Light Source : No B/L
HSD050BHW8-C00-T00 5.0 inch 720*1280 LCD Panel Display
HSD050BHW8-C00-T00 LCD Panel Product details :
Brand | HannStar |
Model P/N | HSD050BHW8-C00-T00 |
Diagonal Size | 5.0" |
Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
Resolution | 720(RGB)×1280, WXGA 296PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 61.776(W)×109.824(H) mm |
Bezel Opening | - |
Outline Dim. | 63.776(H)×115.924(V)×0.5(D) mm |
Treatment | Without Polarizer |
Luminance | 0 cd/m² |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 30 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | IPS Pro, Normally Black, Transmissive |
Plate Thickness | 0.25+0.25 mm |
Transmittance | 3.08% (Typ.)(with Polarizer) |
Support Color | 16.7M 70%NTSC |
Light Source | No B/L |
Weight | - |
Designed For | Mobile Phone |
Frame Rate | - |
Touch Panel | PCAP |
D-IC Detail | COG Suggest HX8394F, ILI9881, JD9365D, OTM1290A, NT35521Z, JD9365Z |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
HSD050BHW8-C00-T00 LCD Panel Shipping and Package :
HSD050BHW8-C00-T00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD050BHW8-C00-T00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD050BHW8-C00-T00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD050BHW8-C00-T00 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
![]() |

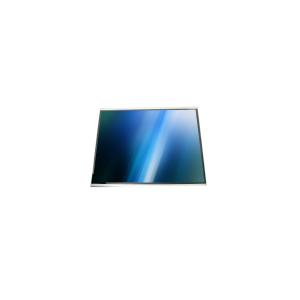

HSD050BHW8-C00-T00 5.0 inch 720*1280 LCD Panel Display Images |
